    • 976nm Bandpass Filter

    Idealphotonics' fiber filters use a special fiber structure to select or filter out specific wavelengths of light from different wavelengths. We can provide filter devices with different optical power versions according to user needs, which can be used in dense wavelength division multiplexing fiber communications, frequency division multiplexing fiber communications, spectrum testing, fiber sensors, fiber lasers and fiber amplifiers. If you need to customize the center wavelength, operating temperature or specific working bandwidth, please contact us for customization.

    产品特点Wide passband range、 Low insertion loss、 High operating power、 Stable operating characteristics

    产品货号A80152161

    应用领域Fiber amplifier、 WDM & DWDM systems、 Fiber equipment、 Fiber laser

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Sherry

    电话：16628709332

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Parameters

    Parameter

    Unit

    Indication

    Central wavelength

    nm

    976

    Maximum insertion loss@ CWL+/-1.1nm

    dB

    1.2

    Minimum passband bandwidth@0.5dB

    nm

    2.5

    Maximum stopband bandwidth@25dB

    nm

    5.0

    Maximum polarization dependent loss PDL

    dB

    0.1

    Minimum return loss

    dB

    50

    Fiber type


    HI1060 Fiber

    Maximum tensile load

    N

    5

    Maximum optical power（CW)

    mW

    500

    Operating temperature

    ℃

    -5 to 70

    Storage temperature

    ℃

    -40 to +85

     Notes:

    The above specifications are all for devices without connectors;

    For devices with connectors, IL will be 0.5 dB higher and RL will be 5 dB lower; This material is RoHS compliant.

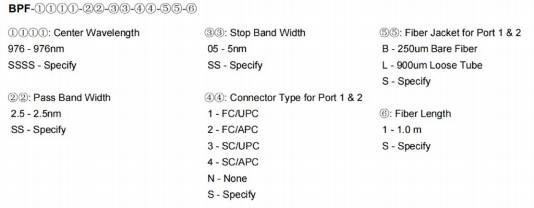

    Model examples
