    • C-band tunable fiber laser 20mW

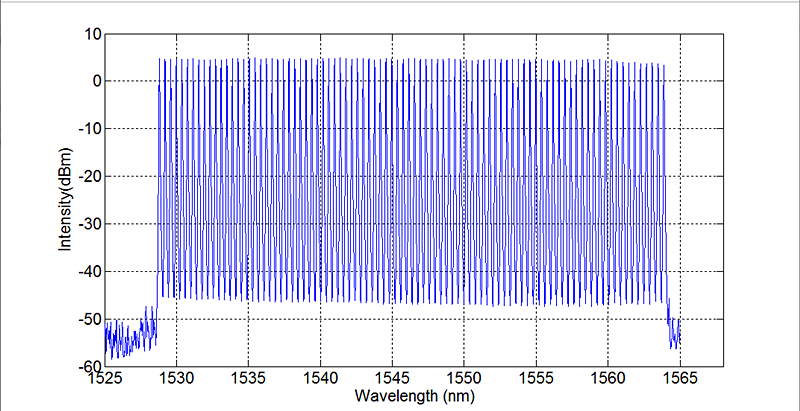

    This light source has a wavelength tuning range that covers the C-band, enabling continuous laser output of up to 96 wavelengths (ITU-T standard wavelengths with a 50GHz wavelength spacing). It integrates an adjustable filter and high-gain chip, offering high output power, narrow linewidth, and high wavelength accuracy. It is equipped with a dedicated driving control circuit and a high-definition color LCD screen. Additionally, optional software for the host computer is available, allowing users to conveniently perform precise wavelength tuning. It is suitable for use in fields such as DWDM system development, fiber lasers, fiber optic links, and optical testing.

    产品特点96 wavelengths、 High power stability、 High side-mode suppression ratio

    产品货号B80020099

    应用领域DWDM systems、 Fiber optic links、 Optical device testing

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话：18602170419

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Parameters

    Optical Specifications

    Unit

    Typ.

    Remarks

    Wavelength tuning range

    nm

    1529.16~1567.13

    ITU standard H60~C13

    Frequency tuning range

    THz

    191.3~196.05


    Channel spacing

    GHz

    50

    Equivalent to 0.4nm

    Side-mode suppression ratio

    dB

    >50


    Number of wavelength channels

    -

    96


    Output optical power

    mW

    10/20


    Short-term stability (15 min)

    dB

    ≤  ±0.01

    Single wavelength, full temperature range

    Long-term stability (8h)

    dB

    ≤  ±0.025

    Single wavelength, full temperature range

    Pigtail type

    -

    SMF-28 or PM1550


    Pigtail connector type

    -

    FC/APC






    Electrical and Environmental Parameters

    Benchtop

    Module

    Control method

    Keypad

    RS232 serial communication

    Communication interface

    Optional

    DB9 Female

    Power supply

    100~240VAC,<30W

    5V DC,<15W

    Dimensions

    260(W)×280(D)×120(H)mm

    125(W)×150(D)×20(H)mm

    Operating temperature range

    -5~+35°C

    Operating humidity range

    0~70%







    Ordering info

    Ordering info/PN

    TFL

    Spectral Range

    Output Power(mW)

    Output Pigtail Type

    Package Type

    C-96 = C-band 96 wavelengths

    10/20

    SM = Single-mode fiber,

    PM = Polarization-maintaining fiber

    B =Benchtop,

    M = Module
