L-band wavelength tunable fiber laser source 10mW

L-band wavelength tunable fiber laser source 10mW

The wavelength tuning range of this light source covers the C band, and it can achieve up to 96 wavelengths of continuous laser output (ITU-T standard wavelength, wavelength interval 50GHz). It integrates tunable filters and high-gain chips, and has the characteristics of high output optical power, narrow line width, and high wavelength accuracy. It is equipped with a dedicated drive control circuit, a high-definition color LCD screen, and optional host computer software. Users can easily tune the wavelength accurately. It can be used in DWDM system development, fiber laser, fiber link, optical testing and other fields.

Product features：64 wavelengths、 High power stability、 High side mode suppression ratio

Part Number：--

Application area：DWDM system、 Fiber link、 Optical device testing

Add to Cart Consult Favorite

Related Products

Main parameters
General Parameters
Optional Configurations
Downloads

Main parameters

Core parameters

Dimension Drawing

General Parameters

Parameter

Parameter	Unit	Typical	Notes

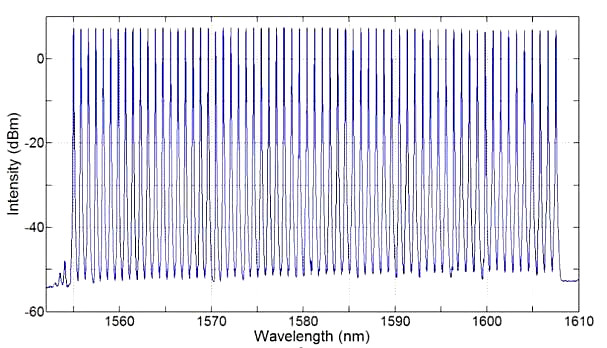

Wavelength tuning range	nm	1554.94~1607.46	ITU Standard C28~L65
Frequency tuning range	THz	192.8~186.5
Channel spacing	GHz	100	Equivalence 0.8nm
Side mode suppression ratio	dB	>50
Number of wavelength channels	-	64
Output optical power	mW	10
Short-term stability (15 minutes)	dB	≤ 0.02	Single wavelength full temperature
Long-term stability (8 hours)	dB	≤ 0.05	Single wavelength full temperature
Pigtail type	-	SMF-28 or PM1550
Pigtail connector type	-	FC/APC

Electrical and environmental parameters	Benchtop	Module
Control mode	Button	RS232 Serial communication
Communication interface	Optional	DB9 Female
Power supply	100~240VAC,<30W	5V DC,<15W
Dimensions	260(W)×280(D)×120(H)mm	125(W)×150(D)×20(H)mm
Operating temperature range	-5~+35°C
Operating humidity range	0~70%

Ordering information

Ordering information / PN#

SFL

Spectral range

Output power(mW)

Output pigtail type

Package method

L-64 = L-band 64 wavelength

SM=Single mode fiber；

PM=Polarization fiber

B=Benchtop；M=Module
