• 1550nm Single Mode Fiber Coupled Laser 20W 43dBm Benchtop

    1550nm Wavelength SM Fiber Coupled Laser (1~20W Power, Bench -top Format) This laser uses a DFB seed laser and a high-power gain optical module to achieve single-mode fiber output of single-wavelength high-power laser. Professionally designed drive and temperature control circuits ensure that the laser works safely and stably, and the spectrum and power remain stable for a long time. The desktop design is easy to operate, and the control interface is simple and intuitive, suitable for laboratory use by scientific research users.

    产品特点1~20W multiple power、 Single mode fiber output、 Power and spectrum stability

    产品货号A80022175

    应用领域Fiber Optic Sensing、 Fiber Optic Communications、 Optical experiments

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话:18602170419

    邮箱:moli@microphotons.com

    主要参数
  • 核心参数

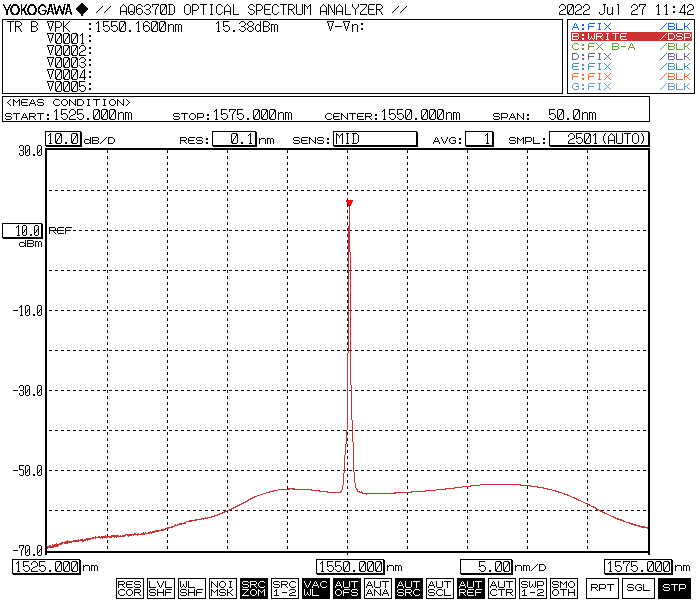

  • Working wavelength Spectral linewidth Output power

  • 尺寸图
  • General parameters

    Optical indicators

    unit

    Typical Value

    Remark

    Working Wavelength

    nm

    1550±0.5

    1540~1570nm can be customized

    Spectral Line Width

    nm

    ≤0.1


    Side Mode Suppression Ratio

    dB

    >50


    Working Mode

    -

    CW

    Continuous light

    Output Power

    W

    1/2/5/10/15/20

    15/20W only available in desktop

    dBm

    30/33/37/40/41/43


    Short-Term Stability (15 minutes)

    dB

    ≤ ±0.02

    Equivalent ≤±0.5%

    Long Term Stability (8 hours)

    dB

    ≤ ±0.05

    Equivalent ≤±1.2%

    Pigtail Type

    -

    SMF-28/PM1550


    Pigtail Connector Type

    -

    FC/APC





    Electrical and Environmental Parameters

    Power: 1/2/5W

    Power: 10/15/20W

    Control Method

    button

    Communication Interface

    Optional

    Powered by

    100~240V AC, <150W

    Size

    260(W)×320(D)×120(H)mm

    360(W)×350(D)×120(H)mm

    Operating Temperature Range

    -5~+35°C

    Operating Humidity Range

    0~70%




    Ordering Information / Model

    FLH

    Working Wavelength (nm)

    Output Power (dBm)

    Output Pigtail Type

    Package


    1550

    30/33/37/40/41/43

    SM=SMF-28 PM=PM1550

    B =Benchtop
