    • C-band wavelength tunable fiber laser source 10mW

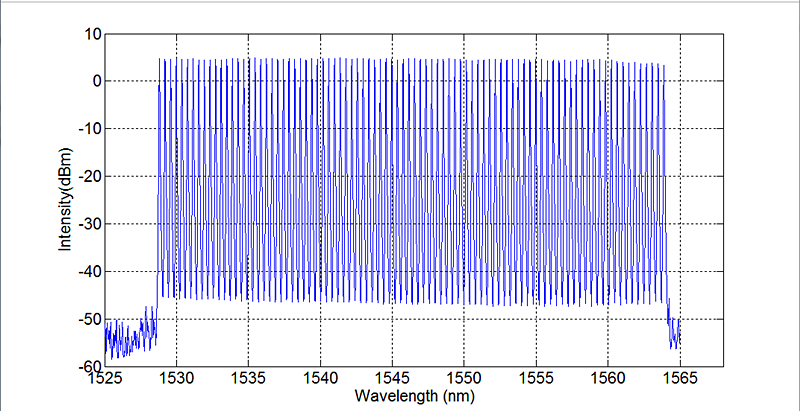

    The wavelength tuning range of this light source covers the C band, and it can achieve up to 96 wavelengths of continuous laser output (ITU-T standard wavelength, wavelength interval 50GHz). It integrates tunable filters and high-gain chips, and has the characteristics of high output optical power, narrow line width, and high wavelength accuracy. It is equipped with a dedicated drive control circuit, a high-definition color LCD screen, and optional host computer software. Users can easily tune the wavelength accurately. It can be used in DWDM system development, fiber laser, fiber link, optical testing and other fields.

    产品特点96 wavelengths、 High power stability、 High side mode suppression ratio

    产品货号B80020088

    应用领域DWDM system、 Fiber link、 Optical device testing

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话：18602170419

    邮箱：moli@microphotons.com

    加入询价单 在线咨询

    收藏

    相关产品

    主要参数
  • 核心参数

  • 尺寸图

    • Parameter

    Parameter

    Unit

    Typical

    Notes

    Wavelength tuning range

    nm

    1529.16~1567.13

    ITU Standard H60~C13

    Frequency tuning range

    THz

    191.3~196.05


    Channel spacing

    GHz

    50

    Equivalence 0.4nm

    Side mode suppression ratio

    dB

    >50


    Number of wavelength channels

    -

    96


    Output optical power

    mW

    10/20


    Short-term stability (15 minutes)

    dB

    ≤  ±0.01

    Single wavelength full temperature

    Long-term stability (8 hours)

    dB

    ≤  ±0.025

    Single wavelength full temperature

    Pigtail type

    -

    SMF-28 or PM1550


    Pigtail connector type

    -

    FC/APC



    Electrical and environmental parameters

    Benchtop

    Module

    Control mode

    Button

    RS232 Serial communication

    Communication interface

    Optional

    DB9 Female

    Power supply

    100~240VAC,<30W

    5V DC,<15W

    Dimensions

    260(W)×280(D)×120(H)mm

    125(W)×150(D)×20(H)mm

    Operating temperature range

    -5~+35°C

    Operating humidity range

    0~70%







    Ordering information

    Ordering information / PN#

    SFL

    Spectral range

    Output power(mW)

    Output pigtail type

    Package method


    C-96 = C-band 96 wavelength

    10/20

    SM=Single mode fiber

    PM=Polarization fiber

    B=Benchtop

    M=Module
