• 1570nm wavelength single mode fiber coupled laser 10 dBm

    The 1570nm single-wavelength laser uses a high-performance butterfly-shaped semiconductor laser chip. Professionally designed drive and temperature control circuits ensure the safe operation of the laser, stable output power and spectrum. It is suitable as a pump laser source for thulium-doped fiber lasers or fiber amplifiers, and can be provided in desktop or modular packages.

    产品特点1~10W multiple powers、 Single-mode fiber output、 Multiple spectrum options

    产品货号B80020052

    应用领域Thulium-doped fiber laser、 Fiber laser、 Fiber sensor

    产品单价联系客服询价

    到货日期请咨询客服获得货期

    产品库存请咨询客服

    Daisy

    电话:18602170419

    邮箱:moli@microphotons.com

    主要参数
  • 核心参数
  • 尺寸图
  • Parameter

    Parameter

    Unit

    Typical

    Notes

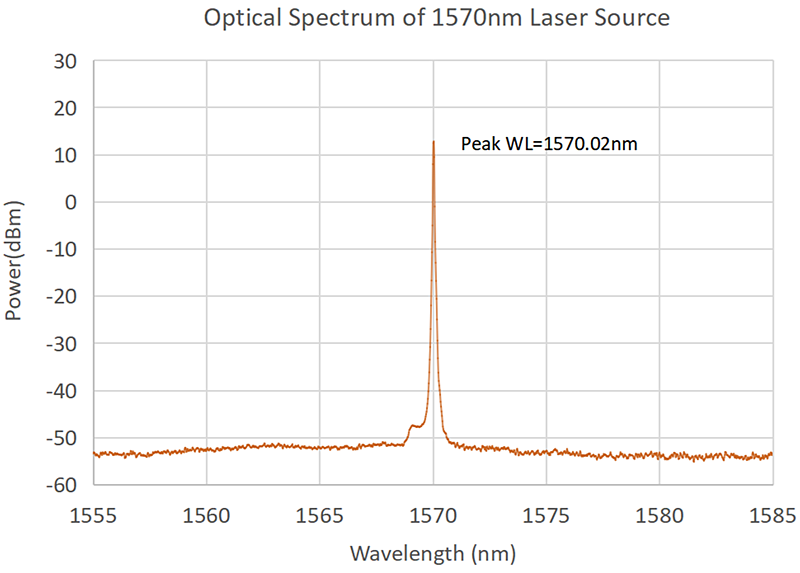

    Operating wavelength

    nm

    1570±1


    Spectral linewidth

    nm

    < 0.1


    Side mode suppression ratio

    dB

    >50


    Operating mode

    -

    CW

    Continuous light

    Output power

    dBm

    10/20/30/33/37/40


    Short-term stability (15 minutes)

    dB

    ≤ ±0.02

    Equivalent≤±0.5%

    Long-term stability (8 hours)

    dB

    ≤ ±0.05

    Equivalent≤±1.2%

    Pigtail type

    -

    SMF-28Fiber


    Pigtail connector type

    -

    FC/APC




    Electrical and environmental parameters

    Benchtop

    Module

    Control mode

    Button

    RS232 Serial communication

    Communication interface

    Optional

    DB9 Female

    Power supply

    100~240V AC,<150W

    5V DC,<60W

    Dimensions

    260(W)×320(D)×120(H)mm

    125(W)×150(D)×20(H)mm

    Operating temperature range

    -5~+35°C

    Operating humidity range

    0~70%


    Ordering information / PN#

    FL

    Operating wavelength(nm)

    Output power(dBm)

    Output pigtail type

    Package method


    1570

    10/20/30/33/37/40

    SM= SMF-28 PM=PM1550

    B=Benchtop M=Modeule

    *33~40dBmJust provide benchtop
